🔍What if a piece of metal could sense heat, move precisely, and power safety switches without electricity? Understanding how thermostatic bimetals works reveals the fascinating science behind such capabilities.

It sounds like magic—but it’s pure physics. Welcome to the world of thermostatic bimetals, where smart behaviour comes from simple materials.

These bonded metal strips power everything from appliances and engines to alarms and relays, bending intelligently with temperature changes. No microchips. No batteries. Just brilliant engineering.

In this post, we’ll uncover the science that makes thermostatic bimetals move—and how engineers turn that movement into powerful, energy-free thermal control.

1. Why the metal Moves: The Coefficient of Thermal Expansion (CTE)

At the heart of every bimetal’s motion is the concept of thermal expansion—the tendency of materials to change size with temperature.

Each metal has its own coefficient of thermal expansion (CTE). When two different metals are bonded:

  • The one with a higher CTE expands more
  • The one with a lower CTE expands less

Example:

  • Copper (high CTE) wants to stretch a lot
  • Steel (low CTE) doesn’t stretch as much

This creates internal stress, causing the strip to bend toward the metal that expands less—a phenomenon we can control with precision.

2. The Bending Mechanics: How the Strip Reacts

Let’s break it down:

  • A bimetallic strip is flat when cool.

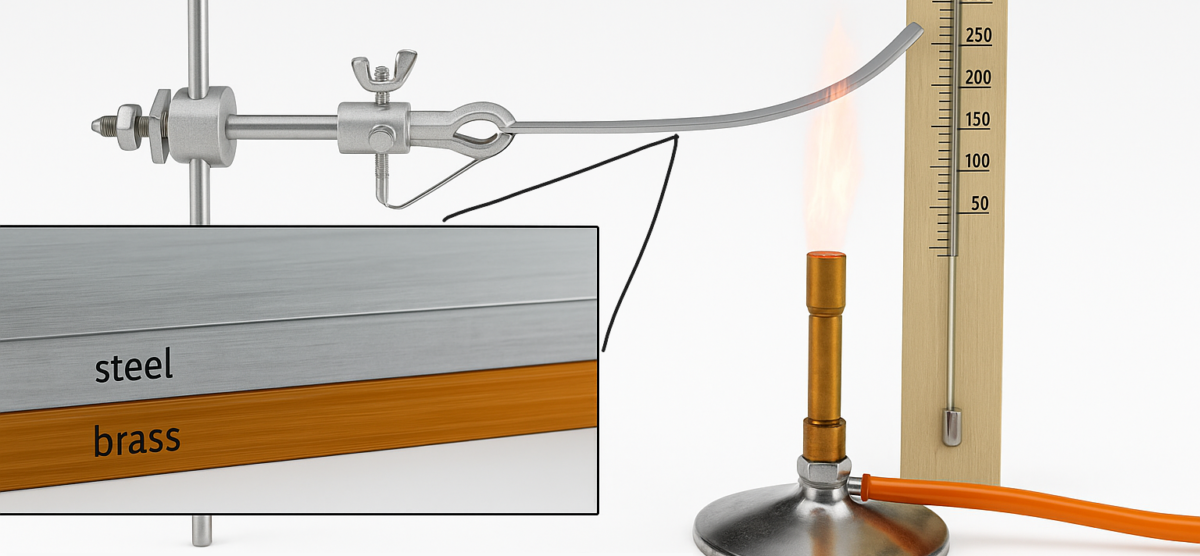

  • As heat is applied, the copper layer stretches more than the steel.
  • The strip bends toward the steel, creating a predictable curve.

🔁 The result?

Mechanical motion triggered by temperature change.

This deflection is:

  • Proportional to the temperature rise
  • Repeatable and precise
  • Reversible—when cooled, the strip straightens

3. Controlling the Curve: Deflection and Motion Types

The amount of bending depends on:

  • The temperature difference
  • The thickness and stiffness of each layer
  • The bond strength and geometry

Engineers use this data to create a deflection-temperature curve, which maps how far the strip will bend at each temperature.

Thermostatic bimetals can be formed into:

  • Flat strips for simple bending
  • Coiled springs for rotational motion
  • Snap-action forms for quick on/off control
The graph is intended to demonstrate relative behaviour only. Extrapolated values may be in approximation

4. Energy-Free Actuation: No Wires, No Problem

Perhaps the most elegant aspect of thermostatic bimetals is this:
They actuate entirely from heat—no electricity required.

Here’s how:

  • Heat energy causes one layer to expand more than the other
  • The resulting mechanical force bends the strip

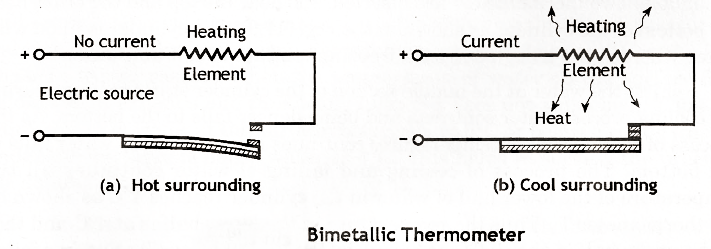

  • That movement is used directly to open or close a circuit, move a switch, or adjust a valve

This makes bimetals ideal for:

  • Remote or rugged environments
  • Safety systems like circuit breakers
  • Power-free thermal regulation in appliances

✅ Thermostatic bimetals convert heat directly into motion—no batteries, no electronics.

Quick Recap

ConceptWhat It Means
CTEMetals expand at different rates when heated
Bending MechanicsUnequal expansion creates predictable strip curvature
Energy-Free ActuationBending motion occurs passively from heat—no power needed

What’s Next?

In the next blog, we’ll go behind the scenes of manufacturing:
🔧 How Thermostatic Bimetals Are Made – including bonding methods, material selection, heat treatment, and forming.

We’ll explore how raw materials become the smart strips that power precision control systems. Stay Tuned


🧠 Got questions? or got an ideas—we’re always ready to dive deeper!
