In high-performance electronic systems, Electromagnetic Interference (EMI) can quietly disrupt communication, distort signals, and compromise safety. One of the simplest yet most reliable shielding tools to counter this is the Beryllium Copper (BeCu) Finger Strip — a small, resilient component that ensures consistent electrical contact between conductive surfaces.

Below, we’ll explore the different types of EMI finger strips and the various installation methods you can choose from, based on your application.

Why Beryllium Copper Finger Strips?

Beryllium Copper is a unique alloy — strong like steel, but flexible and conductive like copper. These qualities make BeCu finger strips ideal for EMI gaskets, offering:

  • High electrical conductivity for effective EMI and ESD transmission.
  • Excellent spring properties that maintain long-term contact pressure.
  • Resistance to corrosion, temperature, and UV exposure.
  • Easy installation in diverse mechanical assemblies.

These strips can be plated (tin, nickel, or gold) to enhance corrosion resistance and electrical stability depending on the environment.

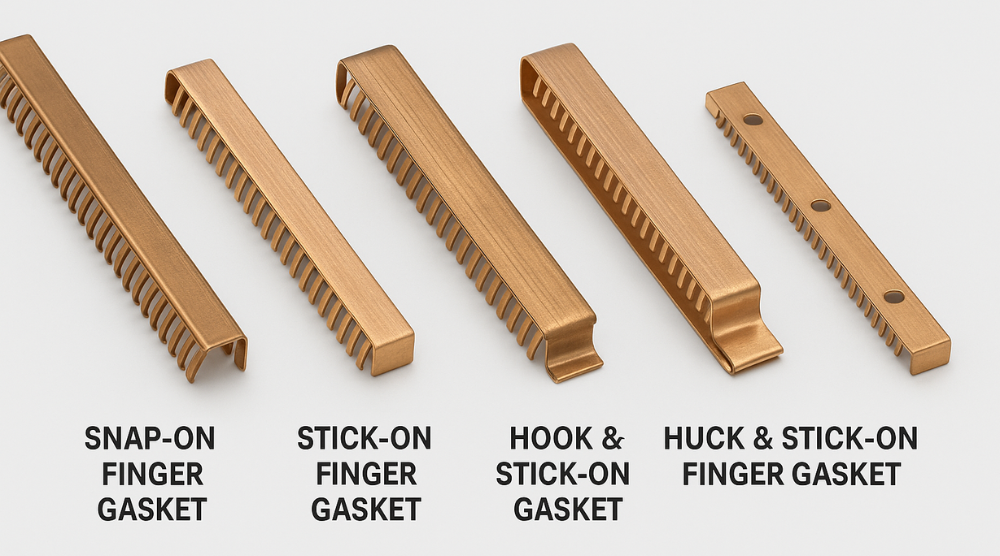

Types of EMI Finger Strips

Different mounting and clipping styles exist to match the mechanical structure of your enclosure or door. Here are the most common types, as detailed in Domadia’s EMI Shielding Beryllium Copper Finger Strip Catalog:

1. Snap-On Finger Gasket

  • Application: Ideal for sliding or removable panels and cabinet doors.
  • Installation: “Snaps” directly onto a flange or edge without adhesive or screws.
  • Advantages: Quick to install or remove, suitable for frequent access panels.
  • Examples: DECF147100, DECF151700* series (Page 1).

2. Stick-On Finger Gasket

  • Application: Best for flat surfaces and where quick bonding is preferred.
  • Installation: Uses a pressure-sensitive adhesive backing for “peel and stick” mounting.
  • Advantages: No tools required; perfect for retrofits or small electronic housings.
  • Examples: DECF0317000, DECF048100*, DECF547100* (Page 2).

3. Clip-On Finger Gasket

  • Application: Used on metal sheet edges, chassis flanges, or panel joins.
  • Installation: Clipped securely over an edge using its spring tension.
  • Advantages: Reliable mechanical hold, good for vibration-prone environments.
  • Examples: DECF463100, DECF647300*, DECF695600* (Page 3).

4. Hook & Stick-On Finger Gasket

  • Application: Combines mechanical grip and adhesive for dual security.
  • Installation: “Hooked” over one side, then stuck in place with adhesive backing.
  • Advantages: Reinforced stability; prevents peeling in high-use doors or lids.
  • Examples: DECF732100, DECF732200* (Page 4).

5. Rivet Finger Gasket

  • Application: Designed for permanent installations in enclosures or large shielded chambers.
  • Installation: Fixed using rivets through pre-punched holes in the strip.
  • Advantages: Durable, long-lasting contact even under vibration or pressure.

Examples: DECF935400, DECF395500* (Page 4).

Choosing the Right Mounting Method

EnvironmentRecommended TypeReason
Frequent access doorsSnap-On / Clip-OnEasy removal and reinstallation
Flat surfacesStick-OnQuick assembly, no tools
Vibration or movementClip-On / RivetMechanical reliability
Sealed cabinetsHook & Stick-OnAdded grip and sealing
Permanent assembliesRivetLong-term mechanical stability

Final Thoughts

Choosing the right EMI finger strip isn’t just about dimensions — it’s about fit, function, and frequency of use. Whether you’re shielding a handheld device or a full-size chamber door, the right mounting style ensures performance without compromising ease of maintenance.

Beryllium Copper finger strips remain a quiet workhorse in EMI control — simple, precise, and enduring.
