Introduction: The Unsung Hero of Electrical Protection

Ever wondered how cables and connections in industrial systems stay safe against heat, moisture, and wear — even in extreme environments? The answer lies in a simple yet powerful product: the heat shrink sleeve.

At DOMADIA™, we believe in highlighting the small innovations that make big differences. The heat shrink sleeve is one such innovation — a compact tube that transforms under heat to provide insulation, protection, and durability to electrical and mechanical components.

Let’s explore what it is, how it works, and where it’s used across industries.

What Is a Heat Shrink Sleeve?

A heat shrink sleeve (also known as a heat shrink tube) is a thermoplastic material that shrinks in diameter when heated. It is typically made from polymers like polyolefin, PVC, or PTFE.

When exposed to heat (usually 90°C to 250°C), the sleeve contracts tightly around cables, joints, or terminals — forming a protective, insulating layer that resists abrasion, chemicals, and environmental damage.

Chemical Composition

The most common materials used in DOMADIA™ heat shrink sleeves include:

  • Polyolefin: Flexible, flame-retardant, and suitable for general electrical insulation.
  • PVC (Polyvinyl Chloride): Cost-effective and widely used for light-duty insulation.
  • PTFE (Polytetrafluoroethylene): Offers high chemical and temperature resistance for advanced industrial use.
  • Fluoropolymer blends: Used in aerospace and automotive industries for high-performance protection.

Additives like cross-linking agents, UV stabilizers, and adhesive linings are often included for enhanced strength and adhesion.

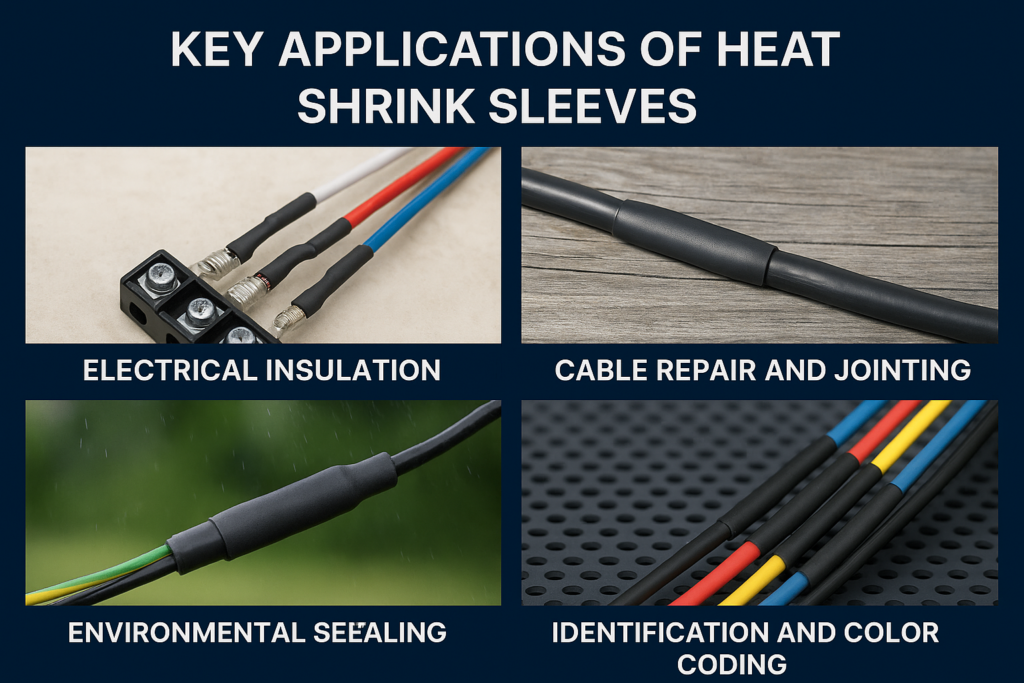

Key Applications of Heat Shrink Sleeves

  1. Electrical Insulation
    Protects wires, splices, and connectors from short circuits and external interference.
  2. Cable Repair and Jointing
    Provides a fast and reliable solution to fix damaged cables without the need for complete replacement.
  3. Environmental Sealing
    Seals out moisture, dust, and corrosion — ensuring longer cable life in outdoor and marine environments.
  4. Identification and Color Coding
    Available in multiple colors for marking and organizing wiring systems efficiently.
  5. Mechanical Protection
    Adds abrasion resistance and strain relief to cables subjected to movement or vibration.

Technical Specifications

PropertySpecification Range
Shrink Ratio2:1, 3:1, or 4:1
Operating Temperature-55°C to +135°C (standard)
Dielectric StrengthUp to 25 kV/mm
Tensile Strength10–20 MPa
Flame RetardancyUL224 approved (for polyolefin types)
Colors AvailableBlack, Red, Yellow, Blue, Transparent, Custom

Standards & Compliance

DOMADIA™ Heat Shrink Sleeves meet global quality standards, ensuring reliability and safety in every application:

  • UL 224: For electrical insulation tubing
  • RoHS Compliant: Free from hazardous substances
  • MIL-DTL-23053: Military-grade standard for high-performance insulation
  • ISO 6722: Automotive wiring standard

Shapes and Types Available

  • Single Wall Tubing: Basic insulation and color coding.
  • Dual Wall (Adhesive Lined): For watertight sealing and corrosion protection.
  • Heavy-Duty Sleeves: For mechanical and outdoor use.
  • Heat Shrink End Caps: To seal cable ends and connectors.
  • Pre-Cut Lengths and Roll Formats: For easy installation and customization.

Why Choose DOMADIA™ Heat Shrink Sleeves?

✅ High-Temperature and Flame Resistance
✅ Superior Electrical Insulation
✅ Custom Sizes, Colors & Branding Options
✅ Adhesive-Lined Variants for Extra Protection
✅ Compliant with UL, ISO, and RoHS Standards

At DOMADIA™, we deliver precision-engineered sleeves that perform reliably in industries like automotive, aerospace, marine, defense, and electronics.

Conclusion

A heat shrink sleeve might seem like a small component, but it plays a big role in safety, durability, and performance. From securing wiring harnesses to protecting connections in harsh environments, its uses are nearly endless.

If you want reliable, high-quality heat shrink sleeves that meet international standards — DOMADIA™ is your trusted source.
